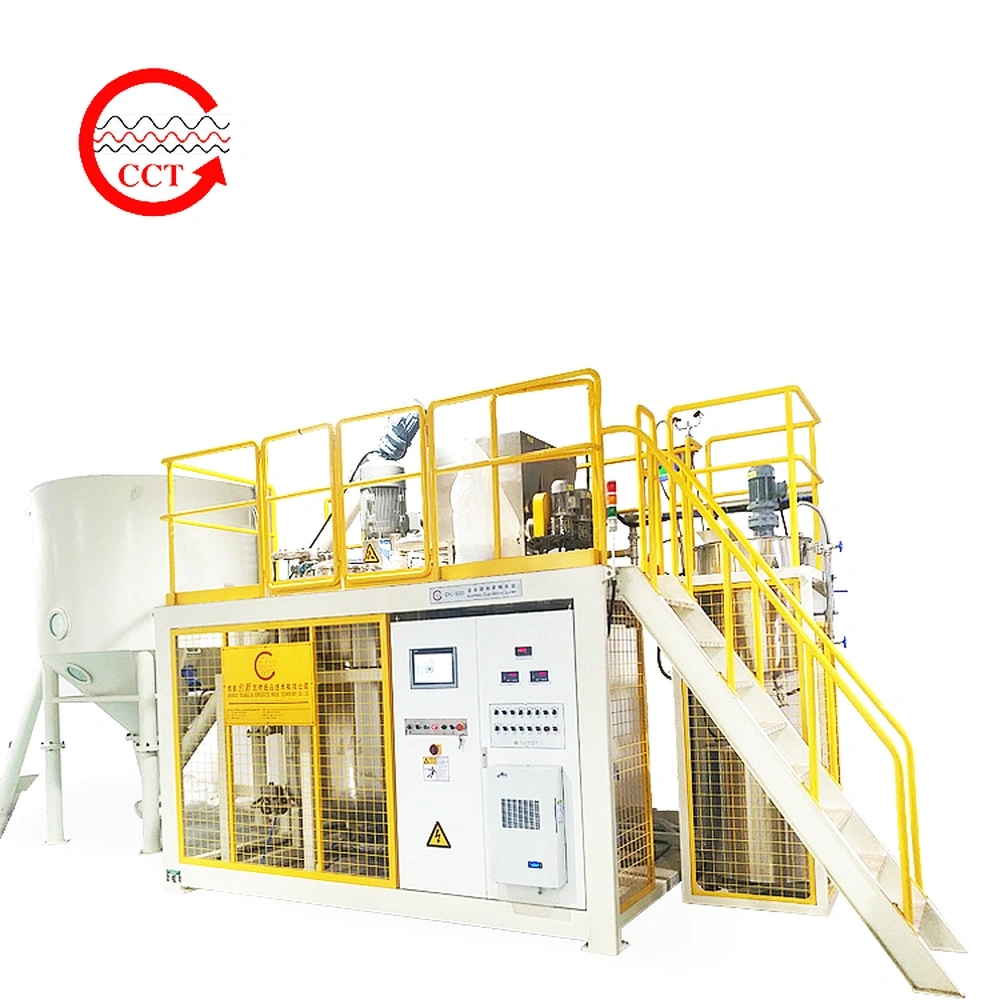

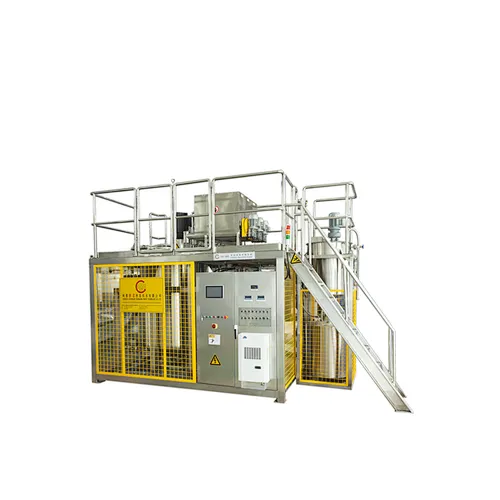

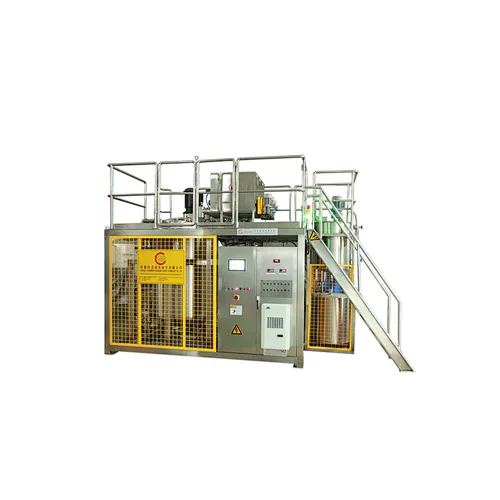

Automatic starch glue mixing system
Automatic starch glue mixing system
Glue making has proven to be a very important process in the corrugating industry. To improve the glue making process, additives and modified starches are used which will usually increase the cost; has developed a solution that will result in a significant cost benefit. In the corrugating industry different solutions are needed for various operating circumstances.
Quantity
Machine Specifications
Processing technologyboth carrier &.no-carrier
Gluecapability1600-6000kgs/hour
One batch production time30-50min/tank
Tank material stainless steel (SUS 304)
General power47KW
Compressed airpressure0.5-0.8Mpa
Max air consumption0.68m3/min
Steam pressure 0.2-1.2Mpa
InstallationDimension 10500*4000*4000mm
Total weightAbout 5.6T
Our system controlled by PLC which can produce &.use fresh glue automatically instead of full-time special human operation.
  1. Main Mixing System
Shorter &.faster glue making process. Glue production capacity: 800-1600kg/tank, 3000-3200kg/hour.
Durable &.high-qualified stainless steel tanks and pipes.
Special shearing device &. Agitating blades bring superior glue penetrability.
  1. MaterialsFeeding System
More accurate materials feeding system controlled by PLC &. 6 units weighing sensors (load cells) in order to guarantee the precise formula.
Equipped with automatic formula correction function. Customer can monitor &. Correct material feeding in the touch screen.
  1. Auxiliary Material Feeding System
Equipped with borax propeller &. Storage tank as well as anti-bridging device.
Various intelligent alarm function for overheat, feeding failure and lack of starch, etc.
  1. Material Delivery System
Automatic glue blowing and filtering function can avoid glue jam in the delivery pipelines.
  1. Control System &. Software
PLC controlled formulation process ensures the accurate glue viscosity &. Reliable glue performance.
Main tank equipped with temperature sensors to ensure accurate glue temperature of different process requirement.
Manual &. Automatic operation mode ensures normal production.
Auto tank washing program avoids waste of water and starch powder.
Automatic formula selection &. Multi formula storage &. Cost accounting report.
  1. Main Frame
Durable steel security fence &. Ladder
Long-life stainless steel main parts (caustic soda pipes, main shaft, shearing blades, etc.)
  1. Starch Feeding &. Storage System
Equipped with starch storage tank and starch screw conveyer system. Starch storage tank has upper &. lower material limit sensors and anti-bridge system. When the starch reaches to the limitation level, the system will automatically alarm for material feeding &. Vibration.
FAQs
1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in?
A: Our factory located in Chengdu city, Sichuan, China.

3Q: Where is the nearest airport of factory?
A: The nearest airport is Shuangliu International airport. It take half an hour from airport to our factory by car. We are glad to pick you up at the airport.

4Q: What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
