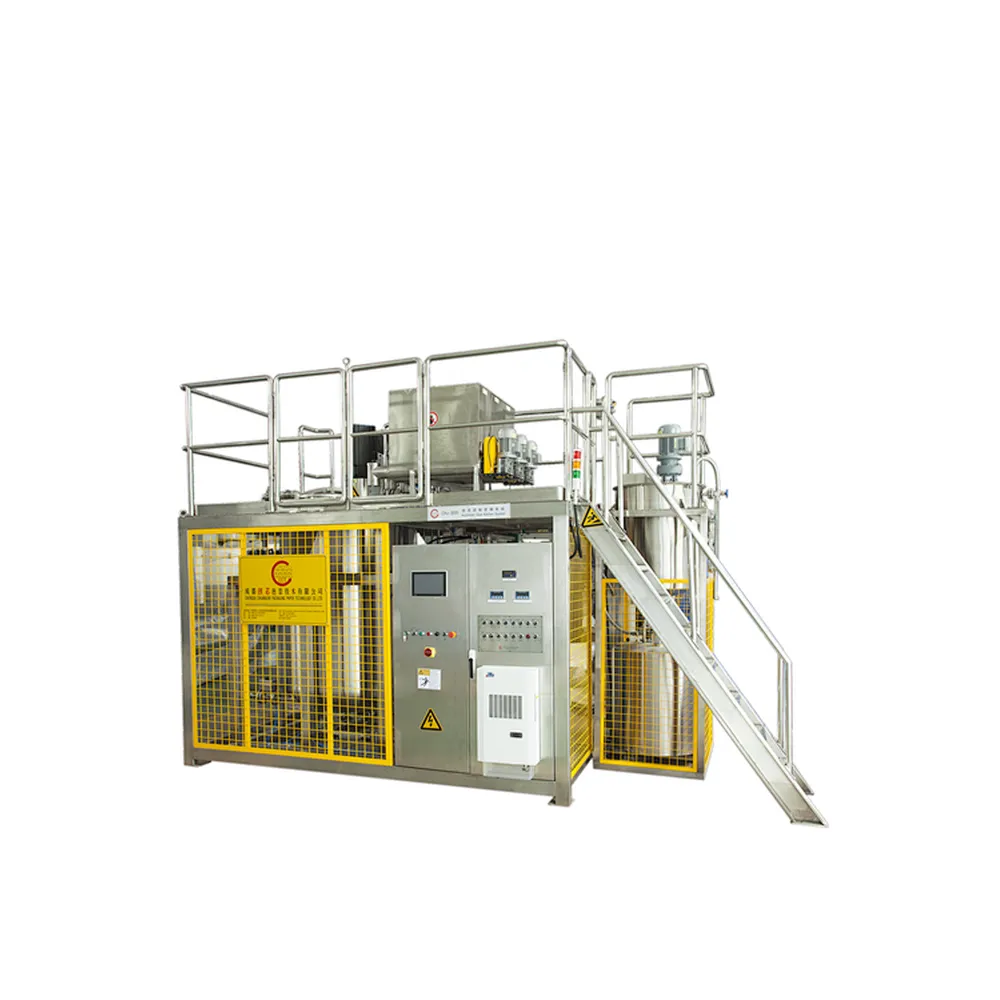

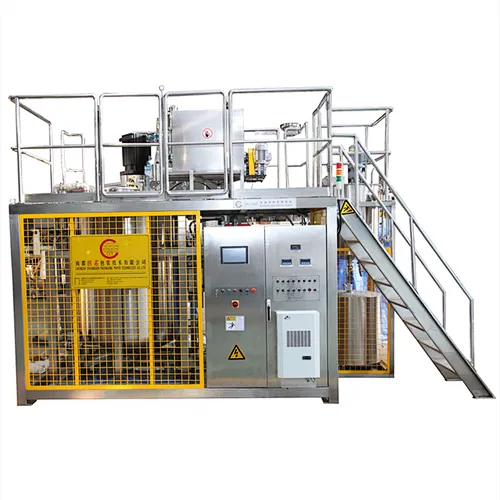

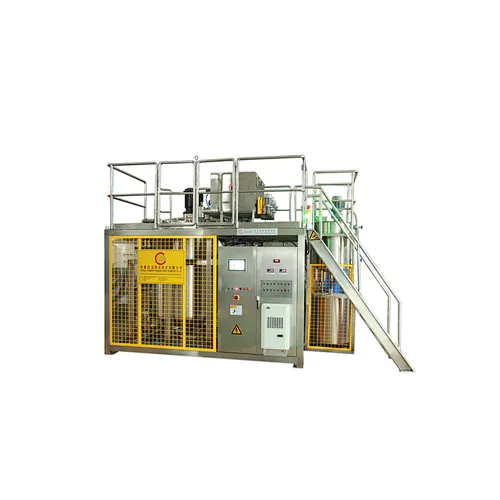

CHJ-6000 No-carrier Fully Automatic Starch Kitchen
CHJ-6000 No-carrier Fully Automatic Starch Kitchen
CCT is the main company to produce No-Carrier fully automatic starch kitchen machine in the corrugated industry. The development of No-Carrier glue kitchen was executed by CCT technicians in integrating our long-term experience and designing capability. The individual advantages of Carrier process and No-Carrier process are coordinated and combined. With our viscosity control technology, CCT glue kitchens are proposed to recycle fresh wash water from production processes for directly mixing stable and powerful native starch glue. The cost saving strategy is accomplished in accordance with our environment concerns.
Quantity
Core concept
® Recycled washing water for glue mixing
®Viscosity detect and control
® High solid contents and low gelatinization temperatures
® Multi mixing processes selection
® Stainless steel mixing tank (SUS304) and main frame (SUS304), even the starch silo
® Siemens drives for main mixer motor & conveyor motors

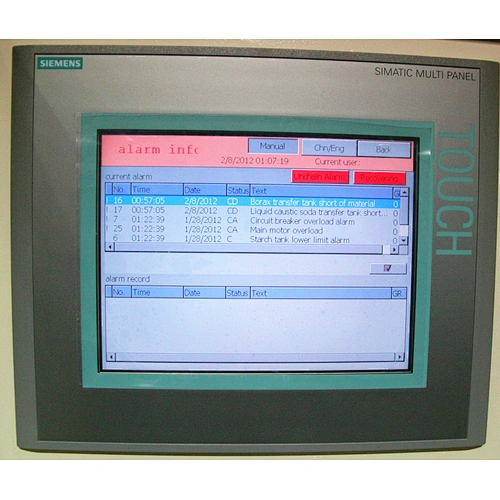

® Premium Siemens PLC &.HMI, Schneider electric and Taiwan Airtac pneumatic control system
® Online viscosity detect and control system
® Sandpiper cast iron diaphragm pump (2”) for starch transfer
Machine introduction
Application:corrugated cardboard industry
Warranty:12 months free after installation acceptance
Place of Origin: Sichuan, China.
Packaging Material: plastic, plywood case, air bubble film packaging with moisture protection
Technical parameters
√Delivery:45-55 days after receipt of your downpayment
√Service:24 hours online support, 15days on-site installation &. Operation training
® Recycled washing water for glue mixing
®Viscosity detect and control
® High solid contents and low gelatinization temperatures
® Multi mixing processes selection
® Stainless steel mixing tank (SUS304) and main frame (SUS304), even the starch silo
® Siemens drives for main mixer motor & conveyor motors
® Premium Siemens PLC &.HMI, Schneider electric and Taiwan Airtac pneumatic control system
® Online viscosity detect and control system
® Sandpiper cast iron diaphragm pump (2”) for starch transfer
Machine introduction
Application:corrugated cardboard industry
Warranty:12 months free after installation acceptance
Place of Origin: Sichuan, China.
Packaging Material: plastic, plywood case, air bubble film packaging with moisture protection
Technical parameters
| Specifications | |
| Processing technology | both carrier &.no-carrier |
| Gluecapability | 1600-6000kgs/hour |
| One batch production time | 30-50min/tank |
| Tank material | stainless steel (SUS 304) |
| General power | 47KW |
| Compressed airpressure | 0.5-0.8Mpa |
| Max air consumption | 0.68m3/min |
| Steam pressure | 0.2-1.2Mpa |
| InstallationDimension | 10500*4000*4000mm |
| Total weight | About 5.6T |
- Payment terms, delivery and after-sales service
√Delivery:45-55 days after receipt of your downpayment
√Service:24 hours online support, 15days on-site installation &. Operation training
