CWF-2000 Ink Printing Wastewater Treatment Equipment
CWF-2000 Ink Printing Wastewater Treatment Equipment
Product Description
CWF-2000 ink printing wastewater treatment machine is a water treatment process that clarifies the printing wastewaters by the removal of suspended matter such as ink or solids. The removal is achieved by mixing the wastewater with some necessary chemicals and then separate the solid and liquid by filter press. It adopts the treatment process of enhanced flocculation, internal electrolysis, adsorption and advanced chemical oxidation decolorization, supplemented by the unique PH regulation technology, which can adjust the PH value and remove most of the anion in the wastewater at the same time. Ensure that sewage meets the design requirements of reuse glue making and washing water.
CWF-2000 ink printing wastewater treatment machine is a water treatment process that clarifies the printing wastewaters by the removal of suspended matter such as ink or solids. The removal is achieved by mixing the wastewater with some necessary chemicals and then separate the solid and liquid by filter press. It adopts the treatment process of enhanced flocculation, internal electrolysis, adsorption and advanced chemical oxidation decolorization, supplemented by the unique PH regulation technology, which can adjust the PH value and remove most of the anion in the wastewater at the same time. Ensure that sewage meets the design requirements of reuse glue making and washing water.
Quantity
Equipment Application
(1) Remove ink color and TSS.
(2) Separate small particles in printing wastewater
(3) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
Technical parameters
Detailed Images
Treatment process
Raw water----booster pump (optional)---quartz sand filter (optional)---activated carbon filter (optional)---water softener (optional)---security filter----high pressure pump---RO system---Uv system (optional) ---pure water tank (optional)
Payment terms, delivery and after-sales service
® Payment:All the payment can negotiate, generally by T/T or L/C.
® Delivery: 45-55 days after receipt of your downpayment
® Service:24 hours online support, 15days on-site installation &. Operation training
Packaging &.Shipping
(1) Remove ink color and TSS.
(2) Separate small particles in printing wastewater
(3) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
Technical parameters
| Specifications | |
| Processing capability | 2T/day |
| Tank material | PE and stainless steel |
| PH | 6-9 |
| COD | ≤50 |
| BOD | ≤20 |
| SS | ≤20 |
| Chroma | ≤30 |
| General power | 1.5KW |
| Compressed airpressure | 0.5-0.8Mpa |
| Dimension(L*W*H) | 3000*2000*2000mm |
| Total weight | about1.0T |

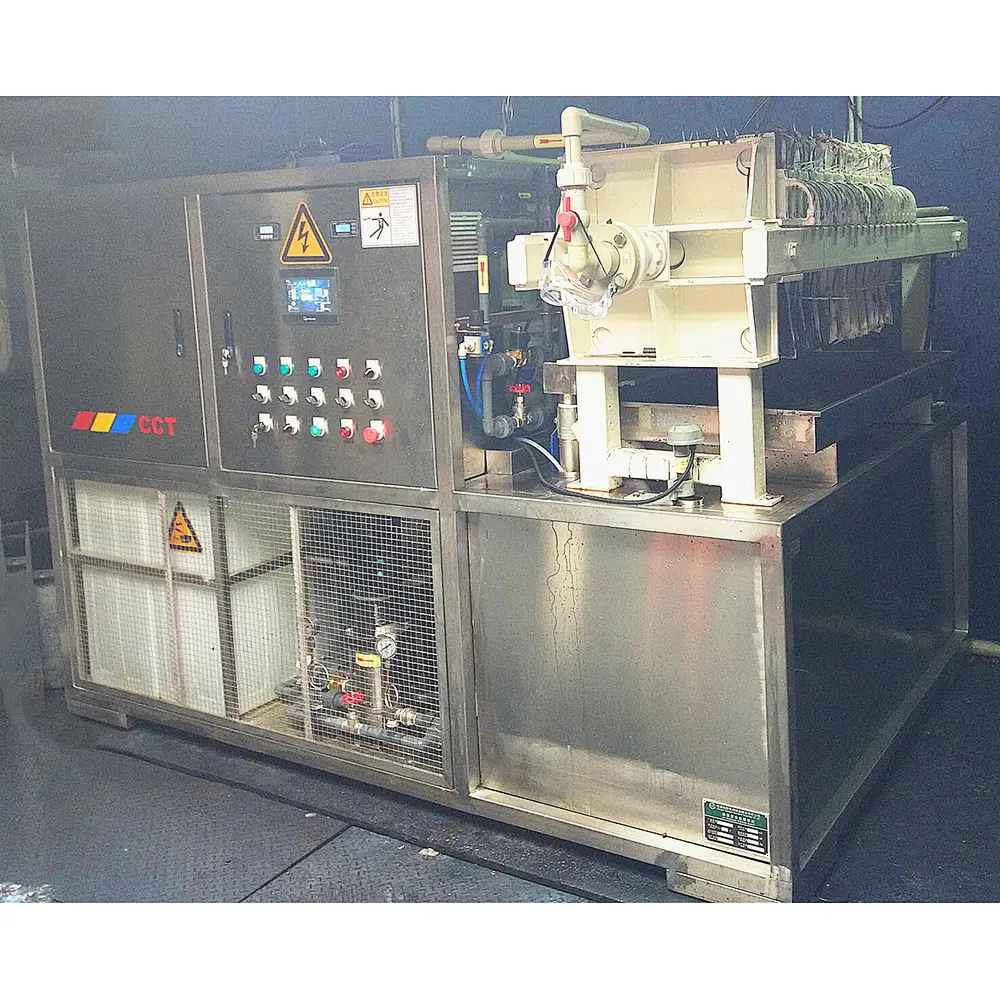

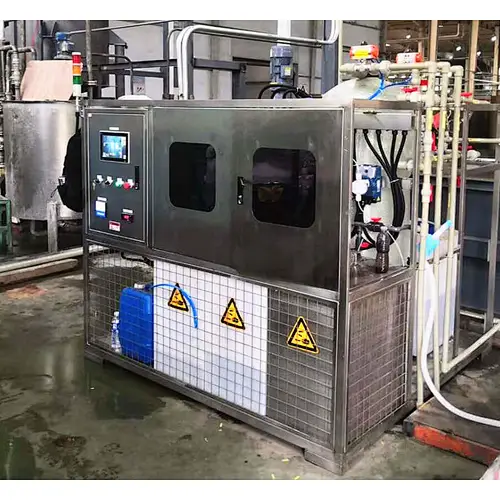

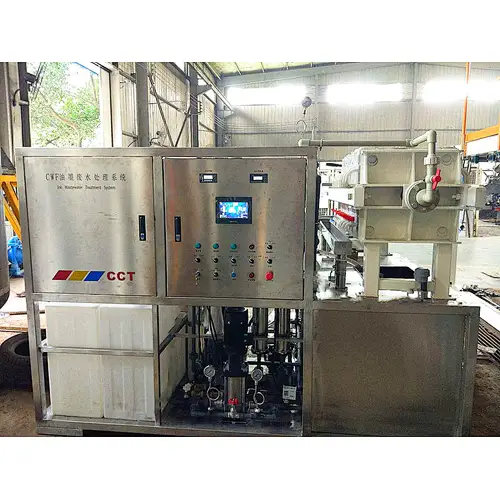

Detailed Images
Treatment process
Raw water----booster pump (optional)---quartz sand filter (optional)---activated carbon filter (optional)---water softener (optional)---security filter----high pressure pump---RO system---Uv system (optional) ---pure water tank (optional)
Payment terms, delivery and after-sales service
® Payment:All the payment can negotiate, generally by T/T or L/C.
® Delivery: 45-55 days after receipt of your downpayment
® Service:24 hours online support, 15days on-site installation &. Operation training
Packaging &.Shipping
